AC Evaporator Coil – How Does It Work?

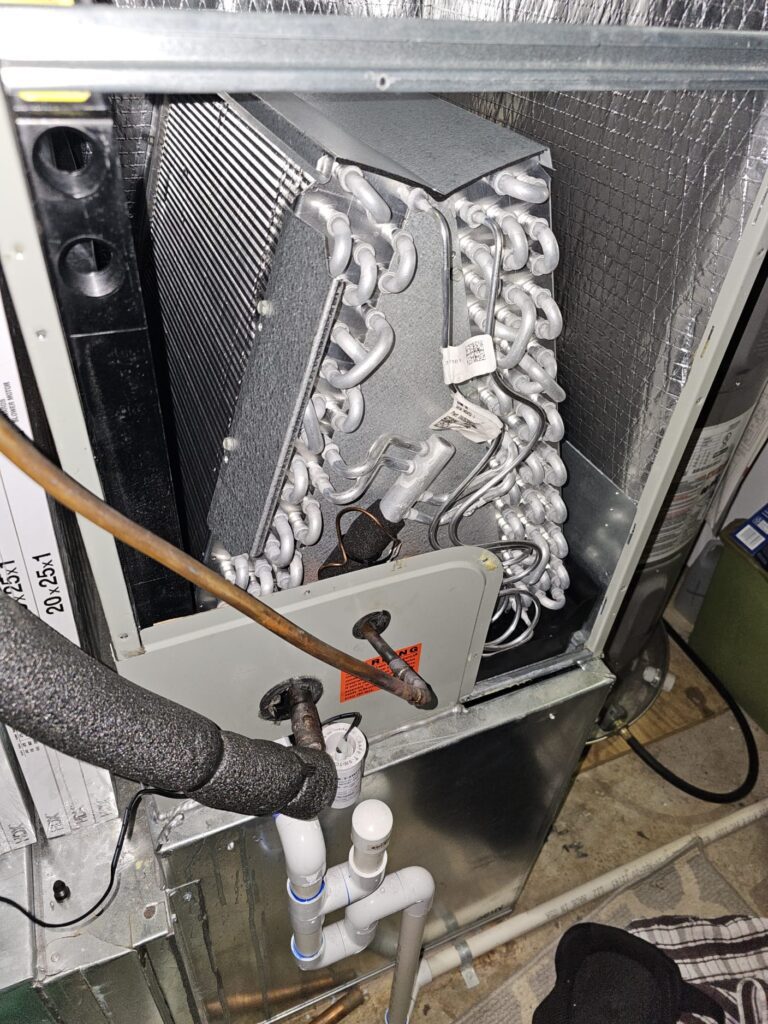

AC Evaporator Coil

Table of Contents

An air conditioning (AC) system consists of various components that work together to cool the air in a space. One important component is the AC evaporator coil. This article explores the functionality and maintenance of the AC evaporator coil, as well as common issues and how to prevent them.

What is an AC Evaporator Coil?

The AC evaporator coil, sometimes recognized as an evaporator core, is a crucial component in the air conditioning system. It is a series of tubes filled with refrigerant, a special liquid that changes from liquid to gas as it absorbs heat and humidity from the air. The evaporator coils are typically located inside the indoor unit of your HVAC system and play a fundamental role in cooling your home.

Definition and Purpose of an AC Evaporator Coil

An AC evaporator coil is a crucial component in an air conditioner system. It is responsible for absorbing heat/Humidity from the air in your home. The evaporator coil is situated in the indoor unit of the air conditioning system and is connected to the condenser coils in the outdoor unit. Together, they form a network that ensures energy efficiency and optimum performance of the air conditioning system.

How Does an AC Evaporator Coil Work?

The AC evaporator coil works hand in hand with an expansion valve or piston that regulates the amount of liquid refrigerant moving into the evaporator coil. As warm air within the room moves over the coil, the refrigerant absorbs heat/Humidity from the air and evaporates. This process changes the refrigerant from a low-pressure liquid into a low-pressure gas. Consequently, the heat from the air is effectively removed, resulting in cooler air. The process is continuous, leading to a decrease in room temperature.

Importance of the AC Evaporator Coil in the Cooling Process

The AC evaporator coil is indispensable in the cooling process of an air conditioning system. By converting liquid refrigerant to a gas, it removes humidity & cools down the warm air in the building. The primary role is to remove heat and humidity from the air. The coil’s ability to transfer heat makes it a pivotal element of the air conditioner. It not only enhances comfort but also assures optimal energy efficiency. Thus, maintaining a functional, clean evaporator coil is essential.

Common Issues with AC Evaporator Coils

Since the evaporator coil is so essential, it’s important to be aware of common issues so you can take steps to prevent them or repair the coil if needed.

Condensation and Ice Buildup on the AC Evaporator Coil

Although a good evaporator coil can efficiently absorb heat & humidity, it may not be without challenges. The process of removing heat & humidity from the air often leads to condensation on the evaporator coil. If not properly managed, it can freeze on the coil leading to ice build-up. This can result in a reduction in cooling efficiency or even a total shutdown of the air conditioner.

Clogged or Dirty AC Evaporator Coil

Another common problem with evaporator coils is dirt and dust build-up. A dirty evaporator coil can drastically decrease the system’s efficiency as the layer of dirt can act as an insulator preventing the coil from absorbing maximum heat and humidity. Over time, this can cause the air conditioner to work harder than necessary, leading to increased energy bills and potential system failure.

Leaks in the AC Evaporator Coil

Leaks are another prevalent issue with AC evaporator coils. Due to the continuous flow of refrigerants, there can be wear and tear in the pipes causing refrigerant leaks. Sometimes the acidic properties of refrigerants may cause the coil to corrode and subsequently develop leaks. This not only undermines the efficiency of the air conditioner but contributes to environmental pollution.

Signs that Your AC Evaporator Coil Needs Attention

Like the condenser unit and condenser coils, the evaporator coil can face certain issues over time, affecting the overall energy efficiency of your air conditioner. Below are three common signs that your evaporator coil might need some attention.

Weak or Insufficient Cooling

One of the most apparent signs of a malfunctioning or dirty evaporator coil is a decrease in the cooling efficiency of your air conditioner. The evaporator coil allows the liquid refrigerant to absorb heat & humidity from the indoor air. If the coil is dirty or malfunctioning, it may not effectively carry out this process, leading to less cool air being circulated & higher humidity around your home. If your indoor unit fails to cool the air adequately, even when the AC is operating at maximum capacity, it could be a sign of an issue with the evaporator coil.

Strange Noises Coming from the Air Handler

The air handler consists of the evaporator coil and the fan that blows air over it. If you start hearing unusual noises such as clanging, banging, or hissing from the air handler, it could be an indication that your evaporator coil is not operating correctly. For instance, a hissing sound could mean a refrigerant leak, often due to a damaged evaporator coil.

Unpleasant Odors When the AC is Running

If there’s an unpleasant smell when the air conditioner is running, it could be due to a dirty evaporator coil. Over time, the coil can accumulate dust, dirt, and moisture, creating the perfect environment for mold and bacteria to thrive. These microorganisms can produce a musty smell, which is then circulated around your home by the air conditioner. Regular maintenance can help prevent this issue.

How to Maintain Your AC Evaporator Coil

Maintaining the evaporator coil is essential to ensure the optimal energy efficiency of your air conditioner. There are several ways to maintain your coil, from regular filter replacement and professional cleaning to routine HVAC maintenance. Here are some methods to help keep your evaporator coil in good shape.

Regular Filter Replacement and Cleaning

Regularly cleaning and replacing the air filter can help prevent dirt and dust from entering the evaporator coil. A dirty filter can restrict airflow to the evaporator coil, causing it to freeze and potentially leading to significant damage. It’s recommended to clean or replace your filter every month to two months, depending on use.

Professional Coil Cleaning and Inspection

Although you can clean the evaporator coil yourself, it’s recommended to have it cleaned and inspected by a professional at least once a year. An HVAC technician can thoroughly clean the coil, removing any buildup that could affect its performance. They can also inspect the coil for possible issues, such as refrigerant leaks.

Routine HVAC Maintenance

Maintaining your entire HVAC system, including the air handler, evaporator coil, and condenser unit, is essential for efficient cooling. Regular HVAC maintenance, at least once a year, can help prolong the life of your system, enhance its energy efficiency, and prevent costly repairs in the future. It’s also an excellent opportunity to have your refrigerant levels checked, as low refrigerant can cause the evaporator coil to freeze.

AC Evaporator Coil Replacement and Repair

When to Consider Replacing Your AC Evaporator Coil

An air conditioner’s performance often depends on the efficiency of its evaporator coil. Therefore, it is crucial to monitor it and consider replacement when necessary. Telltale signs of an inefficient or failing AC evaporator coil include decreased cooling performance, increased energy consumption, and inconsistent temperatures throughout your home. If your air handler houses a dirty evaporator coil, it may freeze, prompting immediate replacement.

Hiring a Professional for AC Evaporator Coil Repairs

Considering the complexity of air conditioner units and the potential risks associated with improper handling, it is wise to hire a professional for AC evaporator coil repairs. DIY repair attempts often lead to more complications, reducing the energy efficiency of your air conditioner. Certified technicians possess the necessary knowledge and tools to diagnose the issue accurately and perform efficient repairs or replacements. They can also provide advice on preventing further problems and maximizing your AC’s lifespan.

Preventing AC Evaporator Coil Problems

Regular maintenance and prompt attention to potential issues can help prevent AC evaporator coil problems, leading to improved energy efficiency and equipment longevity. Preventive measures involve maintaining clean condenser coils, installing quality air filters, and keeping the area surrounding your condenser unit clean and clear.

Importance of Regular HVAC Maintenance

Regular HVAC maintenance allows for early detection and repair of potential problems, increasing the lifespan of your air conditioner. Maintenance usually includes Inspecting the evaporator coil & if its dirty it will need pulled & cleaned this is an extra charge cleaning condenser coils with a water hose if really dirty you will have to chemically clean it at an extra cost , testing the expansion valve, checking refrigerant levels, and inspecting the system for potential issues. Regularly examined and clean evaporator & condenser coils are essential for optimal air conditioner performance.

Installing a High-Quality Air Filter

High-quality air filters not only improve indoor air quality but also protect essential components of your AC, such as the evaporator coil. Improper or dirty air filters allow dust and debris to reach the evaporator coil, which can build up and impair its function. Regular replacement of your air filter can prevent such problems and enhance your system’s energy efficiency. But some filters will cause air restrictions that can cause the system to not perform to peak performance. The best filtration system is an electronic air cleaners.

Keeping the Surrounding Area Clean and Clear

The area around your indoor and outdoor AC units should be clean and clear to ensure efficient system operation. Any debris like leaves, grass, or dirt accumulating around the condenser unit could impact airflow and prevent the condenser coils from releasing heat effectively. It’s recommended to keep a clearance space of at least two feet around your air conditioner.

Call Logan AC & Heat Services for Your HVAC Needs

Whether you have an evaporator coil issue or just need regular maintenance done on your AC system, Logan Services can help. We’ve proudly served Ohio residents for over 50 years with outstanding HVAC services, including heating and cooling system installation, maintenance, repair, and more. Let our expert technicians help you get the most out of your AC unit with quality service and workmanship. Contact us today to get started.

Frequently Asked Questions

How do I know if my AC evaporator coil is broken?

Several signs can indicate a broken AC evaporator coil. One common sign is diminished cooling & humidity removal performance, where your AC fails to cool your home as effectively as it used to. You may also notice a decrease in airflow from the vents or even warm air coming out instead of cool air. Another potential sign is a build-up of ice on the evaporator coil, which can indicate that the coil is not functioning properly. Additionally, if you notice any strange noises, such as hissing or bubbling sounds, it could be a sign of a refrigerant leak from a damaged coil. If you experience any of these signs, contact a professional HVAC technician immediately.

Is it worth it to replace my evaporator coil?

Deciding whether to replace your evaporator coil ultimately depends on the condition and age of your current unit, as well as the cost of a replacement. If your evaporator coil is damaged or malfunctioning, replacing it may be more cost-effective than continuously repairing it. However, if your unit is relatively new and the replacement cost is significantly high, it might be more practical to explore other repair options. Consult a professional HVAC technician who can assess your situation and give expert recommendations.

Are evaporator coils expensive?

The cost of evaporator coils can vary depending on the brand, size, and type of coil needed for your specific air conditioning system. On average, evaporator coils can range in price from a few hundred dollars to a couple thousand dollars. Additional costs may be required for installation and labor. Consult a professional HVAC technician to determine the specific costs and requirements for replacing this equipment.
