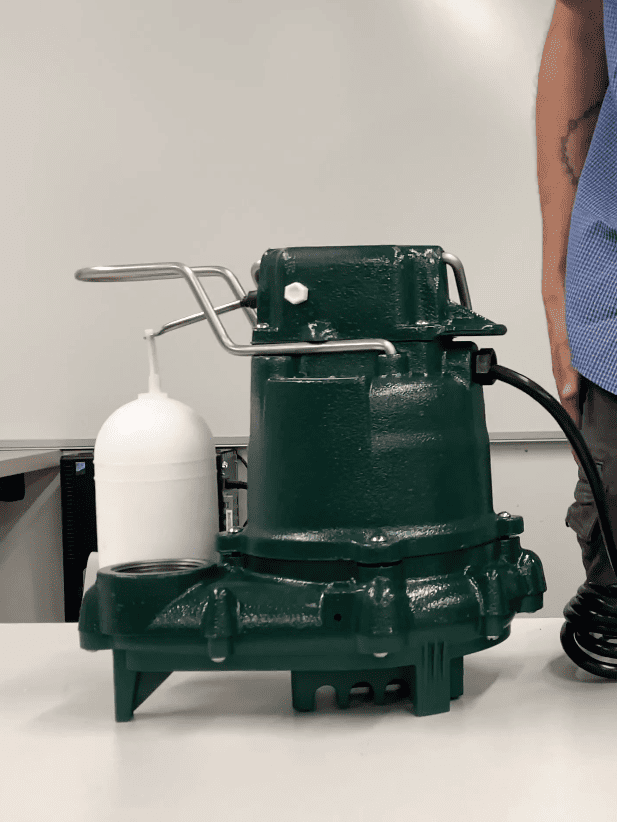

Key Features of the Zoeller M53 Sump Pump
- Zoeller LED Plug that confirms power at a glance
- Cast-Iron Motor Housing for superior heat dissipation and long-term durability
- Vortex Impeller Design that passes solids without clogging in a standard sump pit
- Snap-Action Float Switch with stainless steel switch arm for reliable activation
- Oil-Filled Motor that runs cooler and extends motor life
- Epoxy-Coated Finish that resists corrosion in wet basement environments
- Non-Corrodible Stainless Steel Hardware for long-term reliability
Specifications and Performance
- Horsepower: 3/10 HP
- Voltage: 115V, single phase
- Power Cord Length: 9 feet with molded LED plug
- Maximum Flow Rate: Up to 43 gallons per minute
- Maximum Head: Approximately 19 feet
- Impeller Type: Vortex impeller for solids handling
- Quality Control: Factory water-tested before shipment
The Zoeller M53 Sump Pump is engineered for moving large volumes of groundwater efficiently during heavy rain events.
Materials and Build:
Cast Iron & Stainless Steel
The cast-iron motor housing provides strength, quiet operation, and effective heat transfer compared to plastic sump pump models. An epoxy-coated exterior protects against rust and corrosion common in basement sump applications.
Stainless steel components, including the float guard and switch arm, resist wear and corrosion, while the oil-filled motor design supports continuous operation and long service life.
Check Valve &
Recommended Accessories
A properly installed check valve is essential to prevent water from flowing back into the sump pit after each pump cycle. Logan Services recommends installing a Zoeller Quiet Check Valve (30-0040) to improve efficiency and reduce short-cycling.
Optional accessories may include a float guard for added switch protection and a replacement LED plug to maintain a clear power indication.
Maintenance Tips to Keep the M53 Working Properly
- Test the sump pump monthly by cycling water into the basin
- Clean the intake screen and impeller to prevent debris buildup
- Confirm the float switch moves freely and activates correctly
- Inspect the power cord and LED plug for damage
- Replace the check valve if water consistently returns to the pit
Routine maintenance lowers flooding risk and extends pump life. Logan Services offers plumbing maintenance plans to keep your sump pump running at peak performance.
Troubleshooting Common Issues
- Slow pit drainage may indicate a missing or failed check valve
- Intermittent activation can often be traced to a float obstruction
- Use the LED plug to confirm power before diagnosing motor failure
If you are experiencing any issues with your sump pump that you aren’t able to resolve, call Logan Services’ licensed and insured plumbers at (800) 564-2611.
Comparing the M53 with Other Sump Pumps
| Feature | Zoeller M53 | Zoeller M63 | Zoeller M98 |
|---|---|---|---|
| Horsepower | 3/10 HP | 1/3 HP | 1/2 HP |
| Housing | Cast Iron | Cast Iron | Cast Iron |
| Application | Standard Residential | Higher Flow Homes | Heavy-Duty Use |
Submersible sump pumps like the M53 are ideal for enclosed sump pits, while pedestal pumps are better suited for shallow or narrow basins. Compared to lighter plastic pumps, the M53 offers superior durability and quiet operation.
About Zoeller Pump Company
Zoeller Pump Co. is widely recognized for manufacturing reliable sump pumps with rigorous quality testing. Zoeller introduced the industry’s first LED plug to improve safety and service diagnostics, and maintains strong USA-based manufacturing standards.
Protect Your Basement With a Trusted Submersible Sump Pump
The Zoeller M53 Sump Pump delivers proven basement protection with cast iron durability, quiet operation, and dependable automatic performance. It is a smart choice for standard residential sump pump needs where reliability matters most.
When groundwater rises, the right sump pump and the right installer make the difference. Logan Services offers free installation estimates and professional Zoeller sump pump replacement to help protect your home from flooding with confidence.
Frequently Asked Questions About Zoeller Sump Pumps
Yes! The Zoeller M53 is widely used for standard residential sump pump applications due to its cast iron construction and proven reliability.
With proper installation and maintenance from Logan Services’ plumbers, many Zoeller M53 sump pumps operate for 7–10 years or longer.
The M63 offers higher flow capacity, while the M53 is designed for typical basement sump applications.
The motor can safely run for several minutes at a time during heavy rain, but run times exceeding 10–15 minutes per cycle or near-continuous operation should be evaluated, as they often indicate drainage problems, an undersized pump, or excessive groundwater inflow.
A Zoeller sump pump may not activate due to a power issue, a stuck or obstructed float switch, a failed switch, or a blocked intake. Homeowners should first check the LED plug for power, ensure the float moves freely, and confirm the pump is properly plugged into a working outlet; persistent issues typically indicate the need for professional service or replacement.
